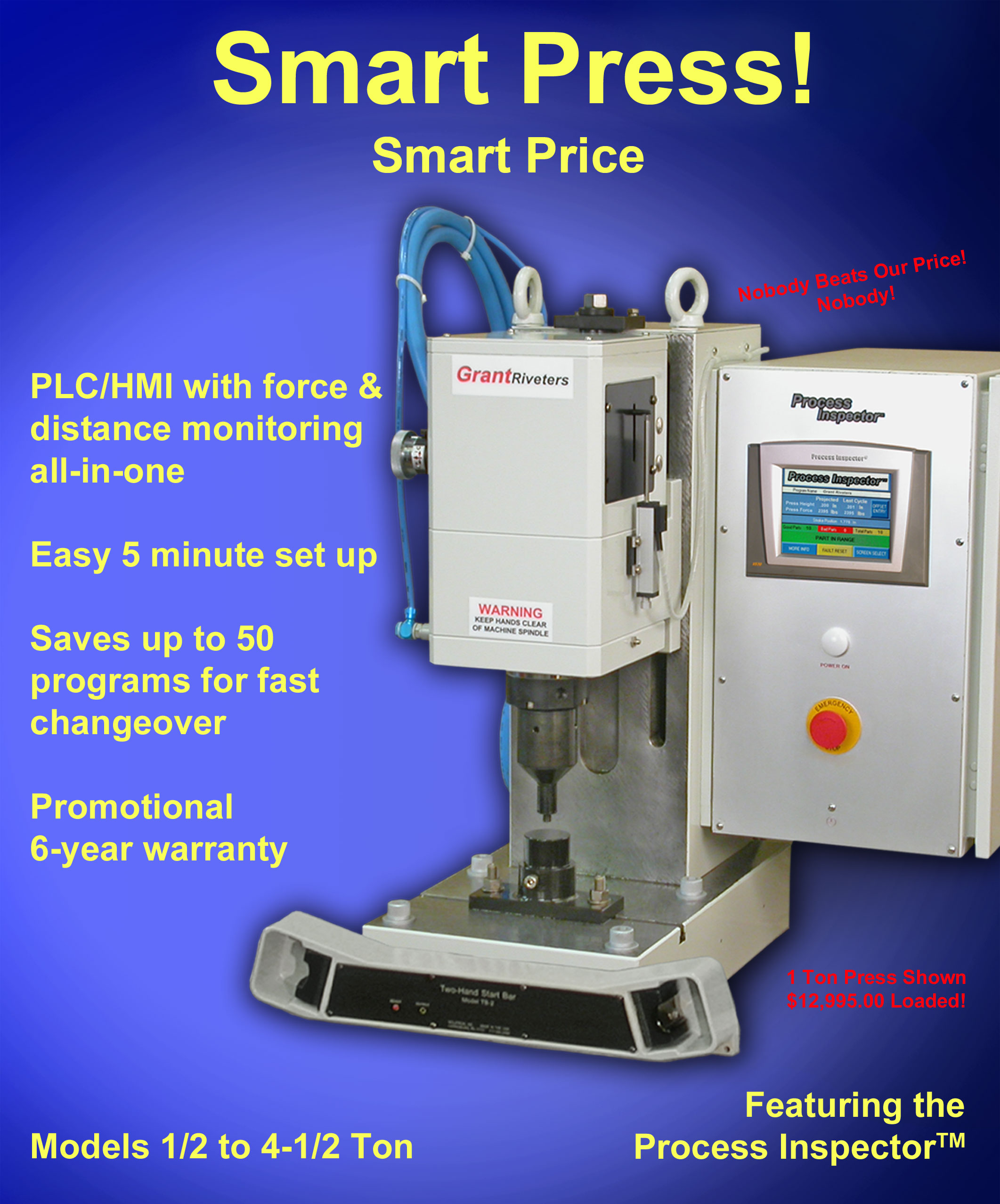

Pneumatic Press

Pneumatic Models
Technical Data		Model - 1/4T	Model - 1/2T	Model - 1T	Model - 2T	Model - 4-1/2T
Press Capacity		1/4 Ton	1/2 Ton	1 Ton	2 Ton	4-1/2 Ton
Adjustable Stroke		0 - 1.18"	0 - 1.18"	0 - 1.18"	0 - 1.18"	0 - 1.18"
Adjustable Stroke		0 - 30 mm	0 - 30 mm	0 - 30 mm	0 - 30 mm	0 - 30 mm
Force Output at	7 Kg/Cm	273 Kg	514 Kg	1245 Kg	2148 Kg	4400 Kg
	100 PSI	600 Lbs	1130 Lbs	2740 Lbs	4725 Lbs	9700 Lbs
Throat Depth		4.33"	4.72"	5.51"	7.87"	7.87"
Throat Depth		110 mm	120 mm	140 mm	200 mm	200 mm
Shut Height		9.5"	9.5"	10.5"	15.0"	17.5"
Shut Height		242 mm	242 mm	267 mm	385 mm	445 mm
Adjustable Time		Programmable	Programmable	Programmable	Programmable	Programmable
Overall Dimensions	Length	17.1"	17.1"	22.4"	24.6"	25.0"
	Length	435 mm	435 mm	570 mm	625 mm	635 mm
	Width	20.0"	20.0"	21.7"	24.4"	26.6"
	Width	510 mm	510 mm	550 mm	620 mm	675 mm
	Height	18.5"	25.0"	33.0"	39.5"	48.5"
	Height	470 mm	635 mm	838 mm	1003 mm	1232 mm
Standard Features		Machine Surfaces are Hand Scrapped with Chrome Quill for Durability	Two Speed Spindle Advance with Oversize Ports	Process Inspector Control PLC/HMI All-in-One! Press to a Force or Distance	Highest Grade Product with Festo Pneumatics and Siemens Electrics	Unprecedented Standard 5-Year Limited Warranty!
